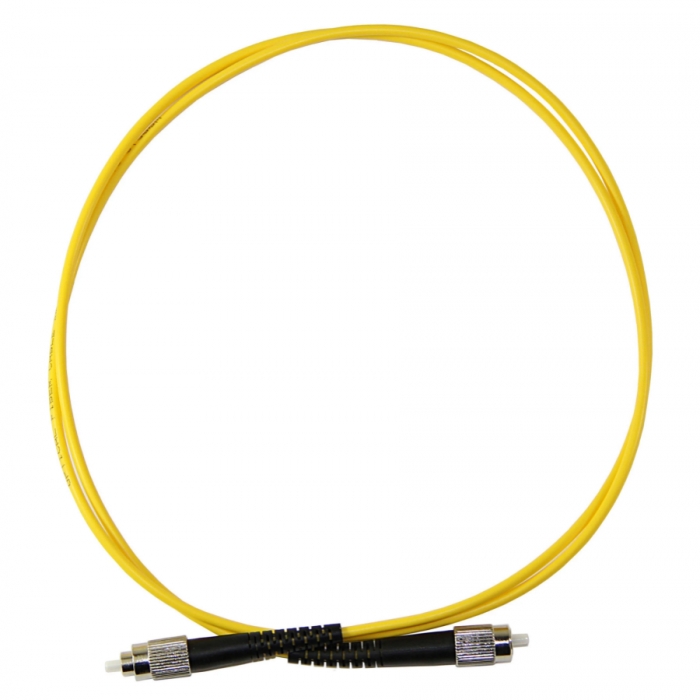

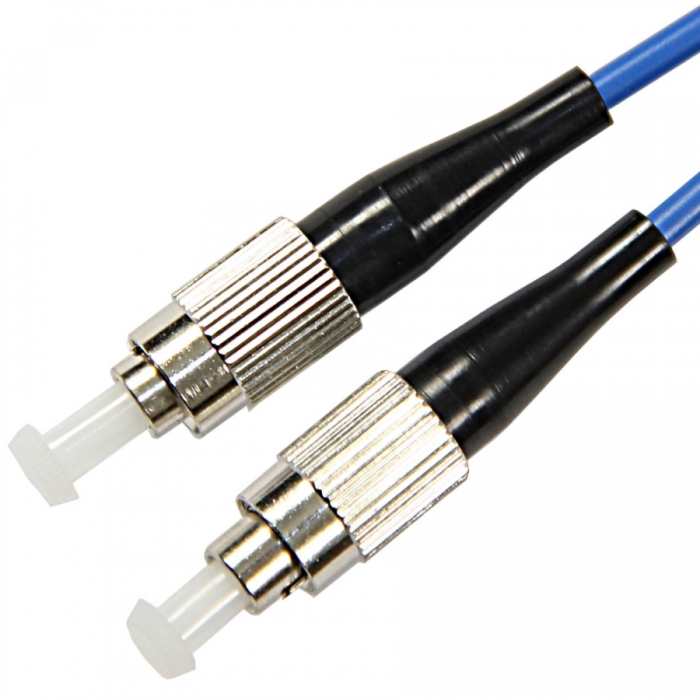

Name:KCFOC006 Fiber Optic Patch Cord FC
Optional Diameters:Φ0.9mm, Φ2.0mm, Φ3.0mm
Connector Types:LC, FC, SC, ST, MU, MTRJ, E2000
Fiber Cores:Simplex,Duplex,Multi-Fiber
Fiber Mode:Singlemode (G.652), Multimode (OM1/OM2/OM3/OM4)
Ferrule Interface Type:UPC to UPC, APC to APC, APC to UPC
Compliant:IEC,TIA/EIA,NTT,JIS
Length:Customized Length
​Package:Bag/Card/Blister/Paperbox/Customized Package

Product Description


Technical Specifications
ParametersFC/PCFC/UPCFC/APC
Working Temperature (°C)-40 — +80
Insertion Loss (dB)≤0.25≤0.25≤0.25
Return Loss( dB)≥45≥50≥60
Durability(Times)≥600≥600≥600
Tensile strength(N)≥55≥55≥55
